SPEC
Model: BTS-530A

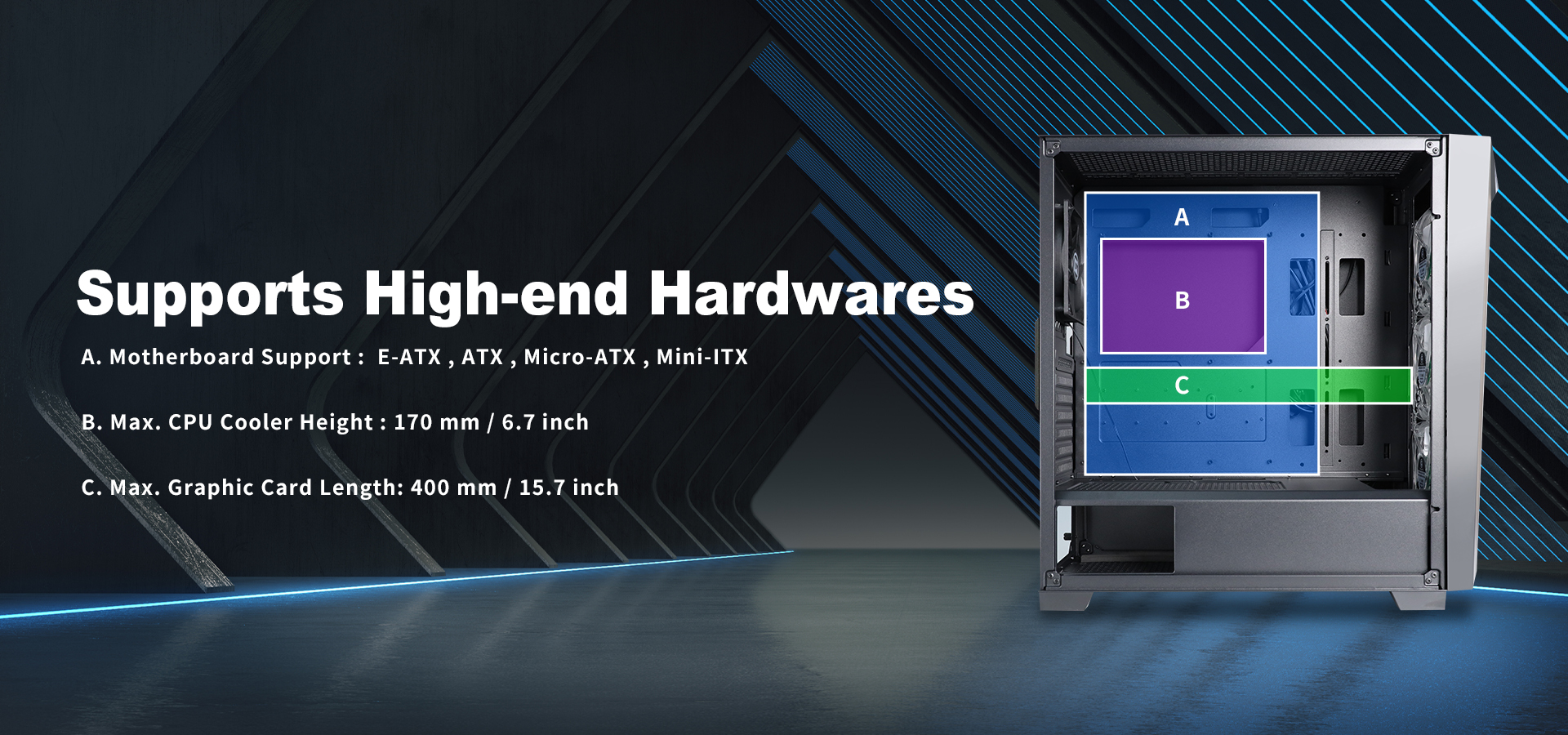

M/B Support: E-ATX, ATX, Micro ATX, Mini ITX
Dimensions: 470 x 220 X 486 mm ( L x W x H )
Case Material: Steel, Plastic, Tempered glass

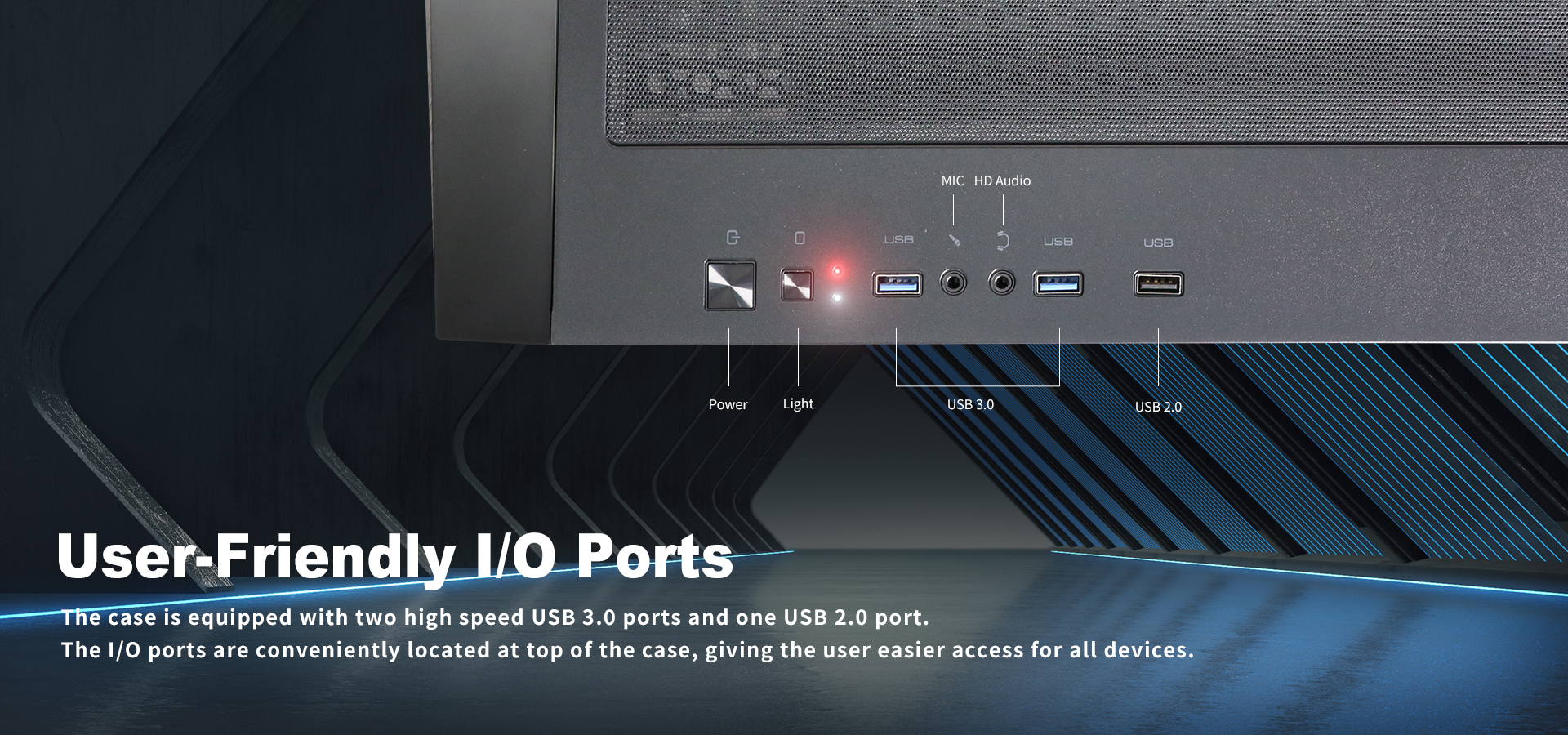

Front I/O: USB 3.0 x 2, USB 2.0 x 1, Audio In & Out (supports HD Audio)
4mm Tempered Glass Window Side Panel: Left

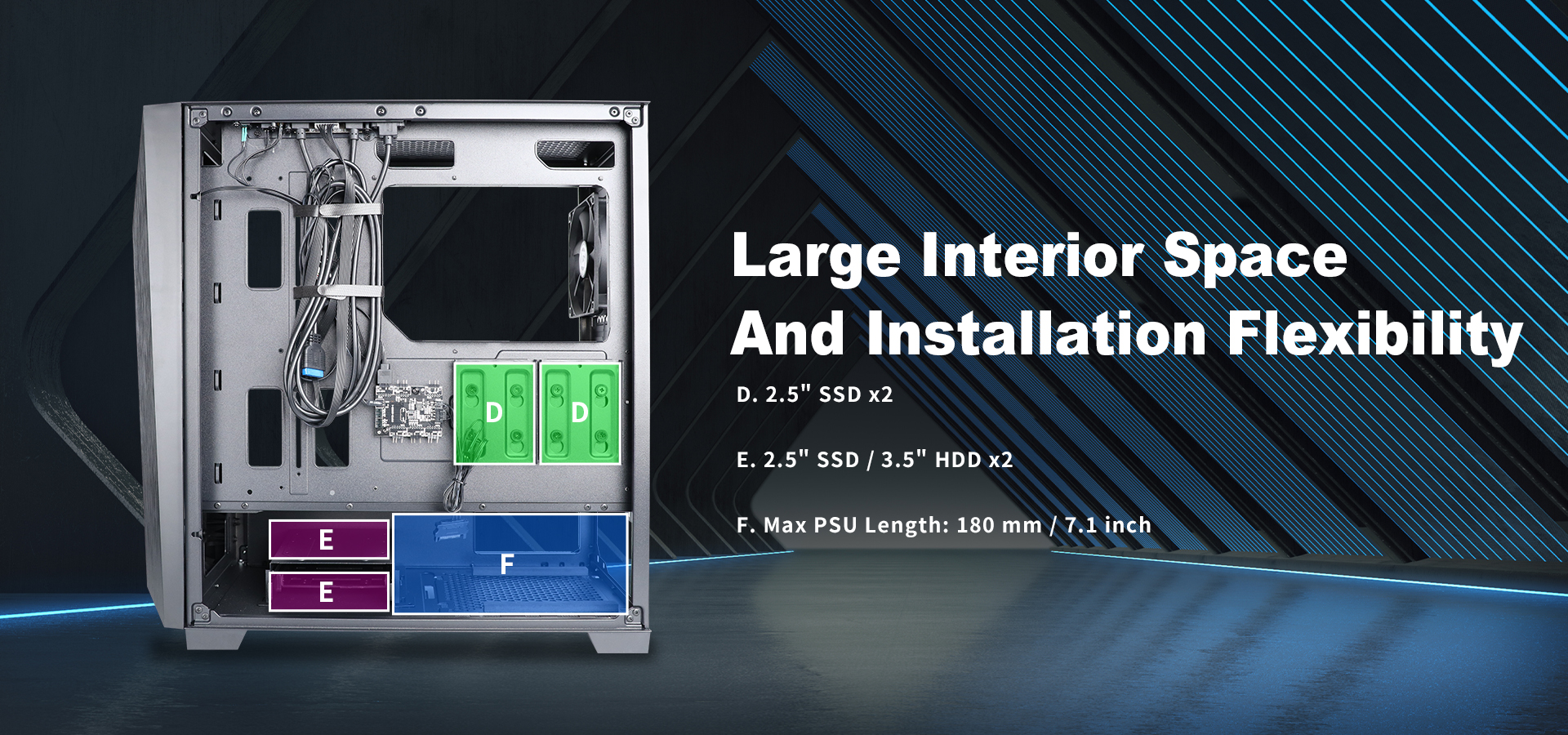

2.5" / 3.5" Drive Bays (Combo): 2
2.5" Drive Bays: 2
Maximum GPU Length: 400 mm / 15.7 inch
Maximum CPU Cooler Height: 170 mm / 6.7 inch
Maximum PSU Length: 180 mm / 7.1 inch

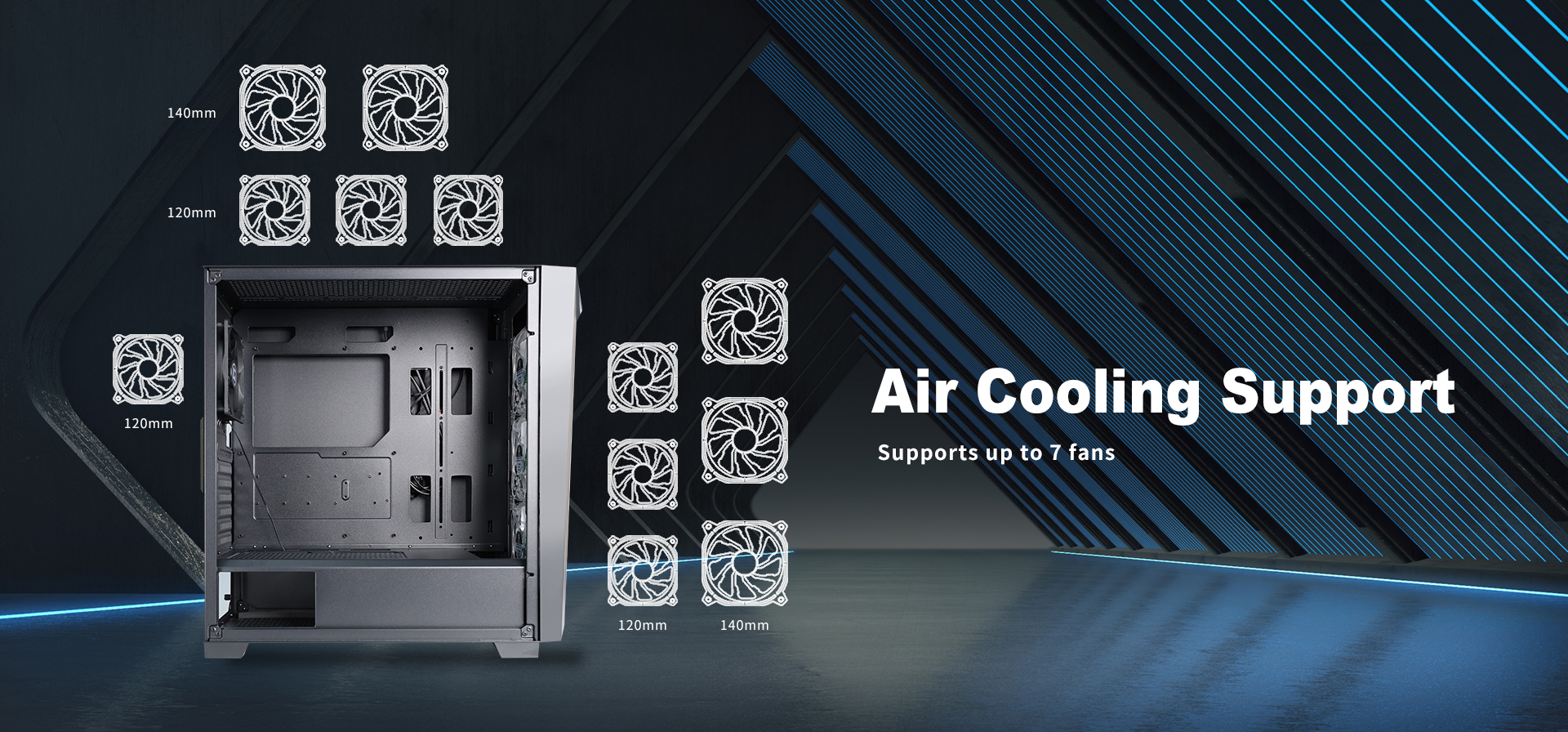

Fan Support

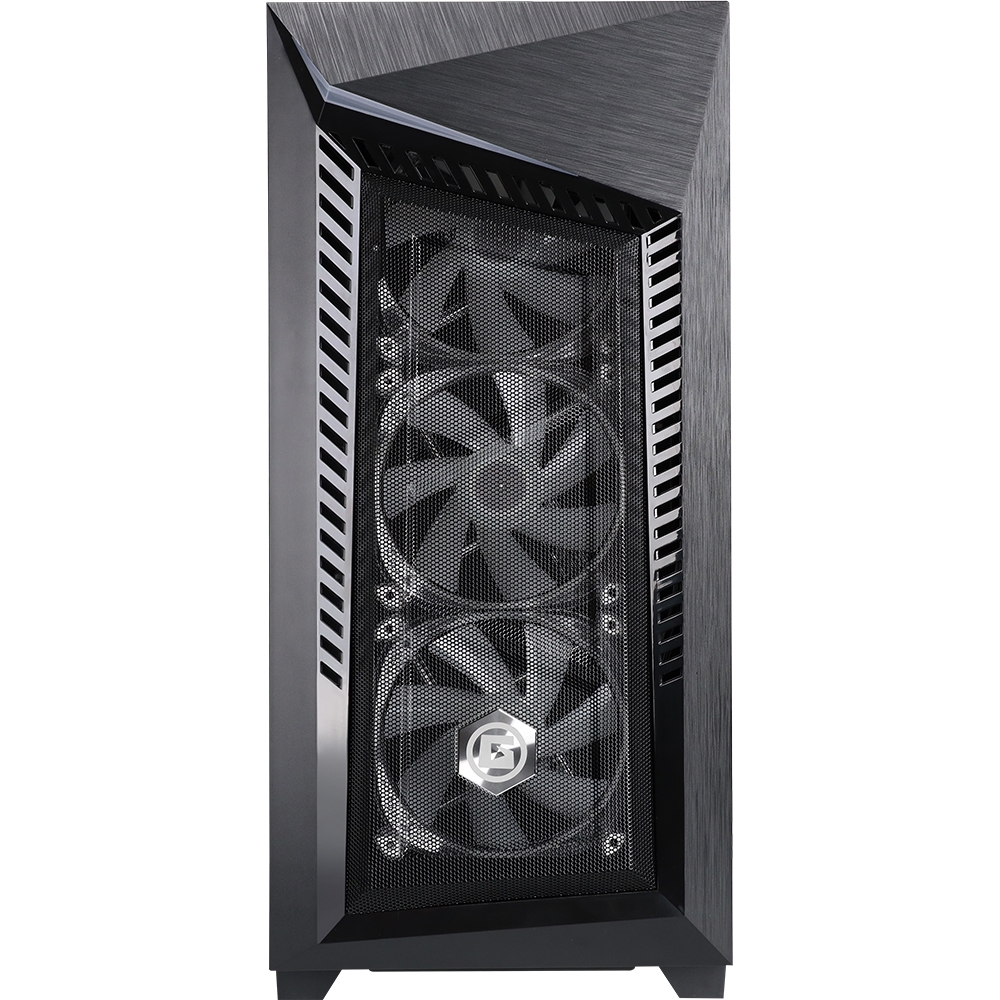

Front: 120mm fan x 3 or 140mm fan x 3
Top: 120mm fan x 3 or 140mm fan x 2
Rear: 120mm fan x 1
Pre-installed Fan
Front: 120mm ARGB fan x 3
Rear: 120mm fan x 1

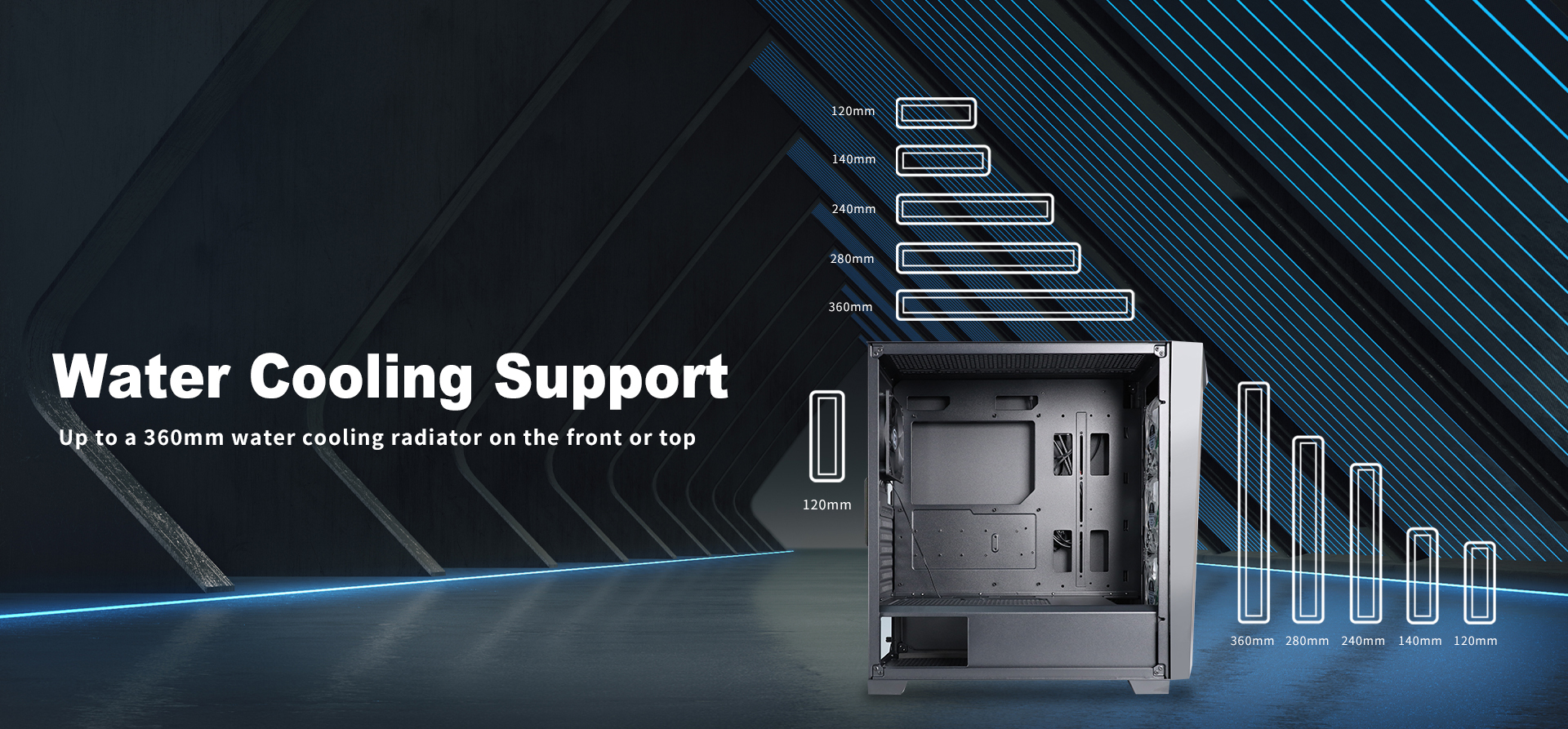

Radiator Support
Front: 360/280/240/140/120mm
Top: 360/280/240/140/120mm
Rear: 120mm
*Please
choose either of front or top to install a 360mm radiator.
M/B Support: E-ATX, ATX, Micro ATX, Mini ITX
Dimensions: 470 x 220 X 486 mm ( L x W x H )
Case Material: Steel, Plastic, Tempered glass
Front I/O: USB 3.0 x 2, USB 2.0 x 1, Audio In & Out (supports HD Audio)
4mm Tempered Glass Window Side Panel: Left
2.5" / 3.5" Drive Bays (Combo): 2
2.5" Drive Bays: 2
Maximum GPU Length: 400 mm / 15.7 inch
Maximum CPU Cooler Height: 170 mm / 6.7 inch
Maximum PSU Length: 180 mm / 7.1 inch
Fan Support
Front: 120mm fan x 3 or 140mm fan x 3
Top: 120mm fan x 3 or 140mm fan x 2
Rear: 120mm fan x 1
Pre-installed Fan
Front: 120mm ARGB fan x 3
Rear: 120mm fan x 1
Radiator Support
Front: 360/280/240/140/120mm
Top: 360/280/240/140/120mm
Rear: 120mm
*Please
choose either of front or top to install a 360mm radiator.
