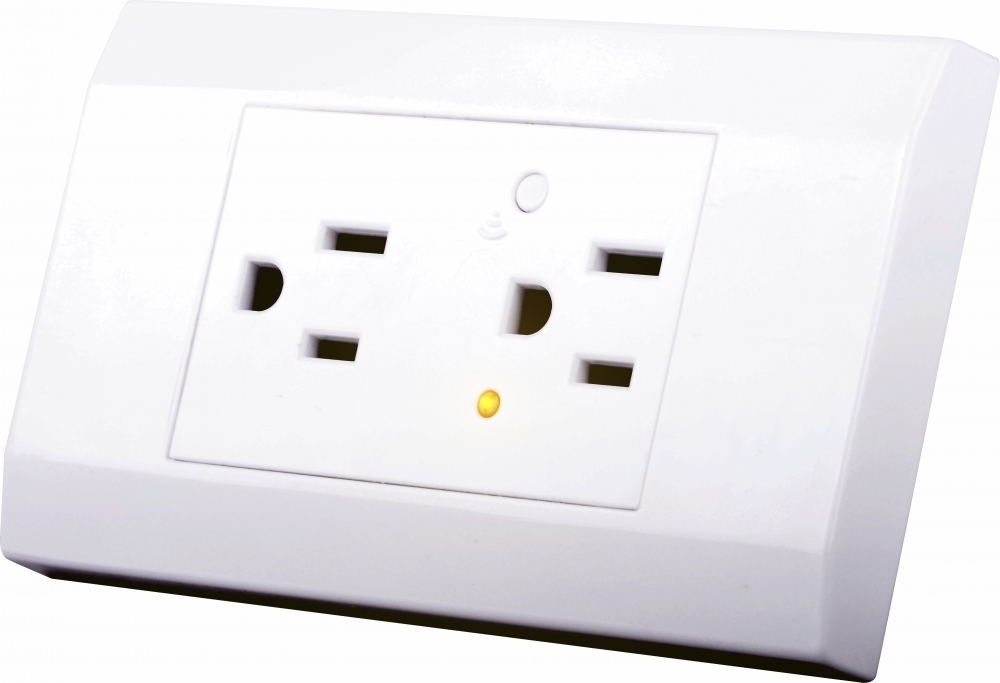

智能插座 Smart Wall Outlet IWO-001

文件下載
Model and Spec

Model and Spec IWO-001
Dimensions (mm) 120*70*43.7
Weight
(Without Wall Plate)
200g
Input Voltage (VAC) 100/240VAC
Input Frequency (Hz) 50-60Hz
Input current (A) 15A/10A
AC Maximum
Power Load
15A per Socket  (Not Simultaneous)/
15A Total Combined
Wires Line, Neutral, and Ground
Interface  Status LED Setting Button
LED Yellow/Green
Wi-Fi 802.11 b/g/n
Relay for Power
Remote Control
V
Energy Monitoring V
Stastics for Power
Consumpstion
V
Operating Temperature 0 to 40°C
(32 to 104°F)
Operating Humidity 10 to 95%
Noncondensing
Shock and Vibaration -40°C, 2 Hrs/+85°C 2 Hrs, 5 Cycles
Safety UL  Listed
