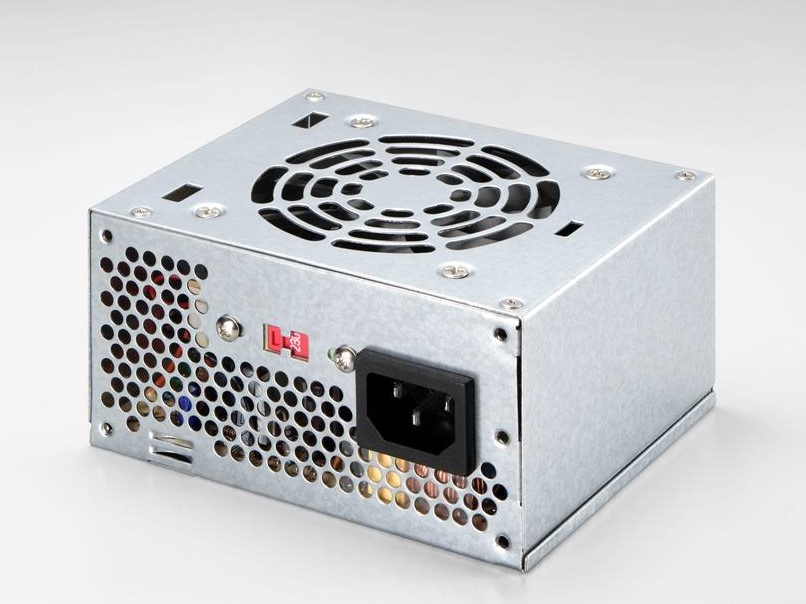

SFX Series
Specification
Rating
|
Model Name |
SL-B300SFX |
||||||||
|
Watt |
300W |
||||||||
|
Dimensions |
100(L)*125(W)*63.5(H)mm |
||||||||
|
Fan |
8CM FAN |
||||||||
|
Connector |
20+4pin M/B x1, 4pin+12V CPU x1, Peripheral x3, Floppy x1, SATA x1 |
||||||||
|
Input |
Voltage |
90V~132Vac or 180V~264Vac. |
|||||||
|
Frequency |
47~63Hz |
||||||||
|
Current |
6/4A for 115/230Vac |
||||||||
|
Efficiency |
65% at full load |
||||||||
|
Output |
DC O/P |
+3.3V |
+5V |
+12V1 |
+12V2 |
-12V |
+5Vsb |
|
|
|
Current |
20A |
12A |
8A |
16A |
0.4A |
2A |
|
|
|
|
+5V & +3.3V combined load |
125W |
||||||||
|
+5V & +3.3V &+12Vcombined load |
285W |
||||||||
|
Protection |
Over voltage protection / Over power protection / Short circuit protection |
||||||||
|
MTBF |
>50’000hrs at 80% load，25℃ ambient |
||||||||
|
Environment |
Operating temperature： Storage temperature： |
||||||||
|
Safety |
CB, UL, TUV, CE |
||||||||
|
EMI/RFI |
FCC Part 15 Class B，CISPR 22 Class B，CE |
||||||||
| Model | Input Current | DC Output Rating | Max Wattage | |||||
| SL-B220SFX | 115/230 Vac | +3.3V | +5V | +12V | -12V | +5Vsb | ||
| 60/50 Hz | 12A | 12A | 15A | 0.3A | 2.0A | 220W | ||
| 6/4A | 80W | 180W | 3.6W | 10W | ||||
| 206W | ||||||||
| SL-B250SFX | 115/230 Vac | +3.3V | +5V | +12V | -12V | +5Vsb | ||
| 60/50 Hz | 14A | 12A | 16A | 0.3A | 2.0A | 250W | ||
| 6/4A | 115W | 192W | 3.6W | 10W | ||||
| 236W | ||||||||
| SL-B270SFX | 115/230 Vac | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb | |
| 60/50 Hz | 16A | 12A | 7A | 13A | 0.3A | 2.0A | 270W | |
| 6/4A | 120W | 84W | 156W | 3.6W | 10W | |||
| 256W | ||||||||
| SL-B300SFX | 115/230 Vac | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb | |
| 60/50 Hz | 20A | 12A | 8A | 16A | 0.4A | 2.0A | 300W | |
| 6/4A | 125W | 96W | 192W | 4.8W | 10W | |||
| 285W | ||||||||
